SPECIFICATIONS
Key Features
Build to Last: This product is made of high-quality tempered glass panels and stainless steel heating tubes, which are sturdy and durable, corrosion-resistant and waterproof, to ensure a long service life.
Fast Heating: With 6500W of powerful power, this product delivers plenty of hot water in 3 seconds without preheating or experiencing drastic temperature fluctuations while in use, saving you time and reducing water waste.
Work Stably: This product works stably even at low water pressure (0.02-0.6Mpa), on high floors, or during peak water use, allowing you to enjoy a constant flow of comfortable hot water. In addition, it has a constant temperature function, so you don't have to worry about the temperature fluctuating too much when showering.
Energy-Saving: The product only heats water when called unlike a tank heater that maintains water temperature even when not being used, so it can save more thermal energy.
Memory Function: The memory function allows the product to retain the last used mode when the heater is turned on, effectively reducing wasted setup time.
Simple Operation: The simple structure, complete accessories, clear LED display that shows temperature, convenient touch buttons, and a detailed English manual make it easy to use this product, even the elderly can operate it independently.

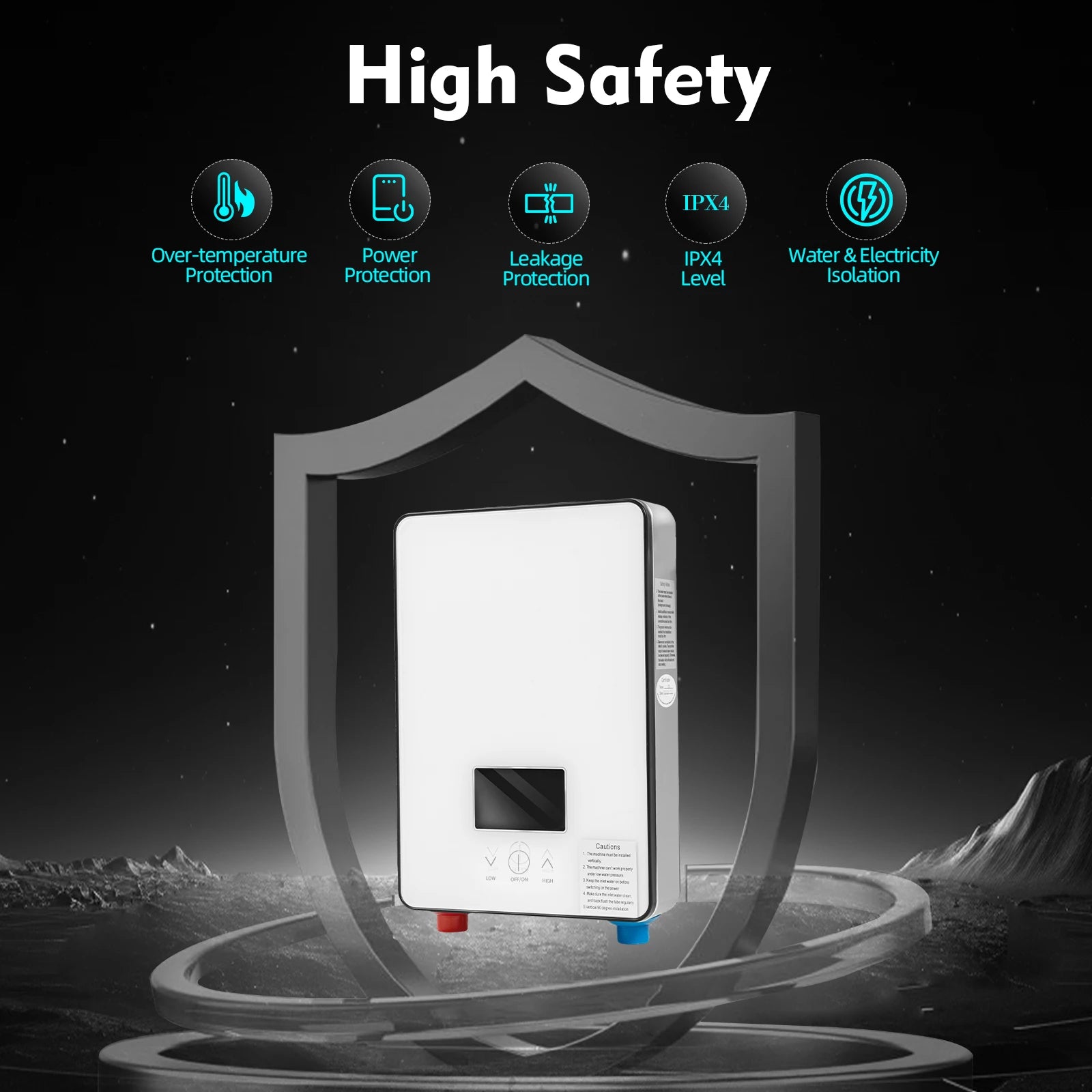

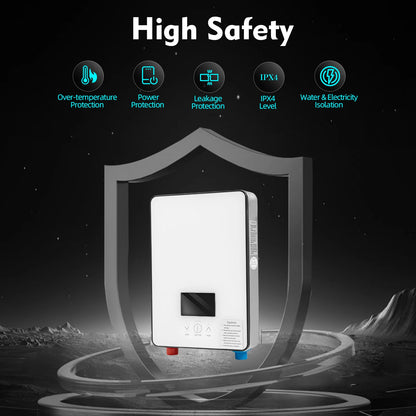

High Safety: Anti-dry burn, anti-leakage, anti-freezing, and anti-scald protection, short-circuit, lightning strike, overheating, and over-voltage protection, power-on self-test, water and electricity separation, IPX4 waterproofing, and automatic power-off when water is cut off provide this item with high safety, allowing you to use this product confidently.
Space-Saving: Its compact design (7.32*2.24*10.9 inches) won't take up much space on your countertop. It can be mounted on the wall or installed anywhere near the spout to avoid wasted space.
Complete Set: The product includes a range of items such as a hand shower, a shower holder, and a shower hose, which is very convenient since you don't need to buy additional items.
Easy to Install: With a simple structure, complete accessories, and corresponding mounting screws, you can quickly complete the installation.
Details
Water Inlet Filter: It provides you with cleaner water, and greatly protects your health.
Red & Blue Inlet and Outlet: The red and blue markings make it easy for you to identify and avoid installation errors.
Color: White
Style: Modern
Shape: Rectangle
Assembly Required: Yes
Mount Type: Wall-mounted
Material: Tempered Glass, Stainless Steel
Control Method: Touch Screen
Screen Type: LED
Wire Requirements: ≥ 2.5 mm² Copper Core Wire
Rated Voltage: AC 220V/110V
Rated Frequency: 50Hz
Rated Power: 6500W
Heating Time: 3 Seconds Instant Heat
Water Inlet: Lower Inlet
Rated Current: 29.5A
Rated Water Pressure: 0.02-0.6Mpa
Waterproof Level: IPX4
Temperature Range: 30-55°C/86-131°F
Magnetic Card Table: 10 (40) A
Mechanical Watch: ≥5(20)A
Air Switch: ≥32A
Hot Outlet Pipe Connector Diameter: Inner 0.7cm / 0.3inch; Outer 2cm / 0.8inch
Cold Inlet Pipe Connector Diameter: Inner 1.2cm / 0.5inch; Outer 2cm / 0.8inch
Water Flow to Activate: 1.2-1.5L/0.32-0.4 gal/min
Gross Weight: 2.2kg/4.85lbs
Net Weight: 2kg/4.41lbs
Product Size: 18.6*5.7*27.7cm/7.32*2.24*10.9in
Package Size: 32*27*12.5cm/12.6*10.63*4.92in
Package Included
1* Electric Water Heater
1* Shower Head
1* Shower Hose
1* Shower Holder
1* English Manual
All Accessories for Assembly
Notes
1.Please note that the water provided by this product is not recommended for direct drinking.
2.If the local temperature is relatively low, the use of water flow is relatively large, the water temperature can only rise to a certain temperature.
3.The water source must be connected before the power is turned on. Do not heat the water heater when there is no water or when it is frozen. Do not use this product when the temperature is lower than 32° F. Please test the water temperature with your hands before use to avoid burns.
4.After a period of use, there will be water quality in the water heater, which will cause uneven heating, and it is easy to burn out the main board. If the customer does not use it for a long time, it is recommended to recoil it if it is used again.
5.Please note that this product must be connected with an air circuit breaker, not a plug-in socket.
6.Please do not use an electric water heater when the water pipe freezes, otherwise it may damage the product.
7.Please note that to ensure product quality, the product will be checked before leaving the factory, if you receive the product found inside the residual water droplets, this is a normal phenomenon that does not affect the use.
8.Please note that this product must be installed vertically/upright, if the angle of inclination is too large, the machine will not work. Moreover, it must be equipped with a grounding electrode and leakage protector.
9.Please beware of electrical safety hazards, improper installation may lead to major safety hazards, so please be sure to let the professionals install the product rather than install it yourself. Please ensure that the ground wire is connected reliably.
10.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
